FLUX Beam Air Pro

The FLUX Beam Air Pro is a professional laser fume extraction and air filtration system designed to help capture smoke, airborne particles and odours produced during laser cutting and engraving. It features advanced three-stage filtration, adjustable airflow and smart monitoring when connected to compatible FLUX laser machines.

The Beam Air Pro is designed for FLUX laser cutters, including the Beamo, Ador, Beambox series and HEXA. It can also be used with other brands of laser equipment where the extraction connection and airflow requirements are suitable. Automatic synchronisation and monitoring features depend on machine compatibility.

Yes. The Beam Air Pro can be used with suitable laser cutters from other manufacturers, provided the extraction hose connection and airflow requirements are compatible. Manual airflow control is available, although FLUX-specific automatic operation and filter monitoring may not be supported.

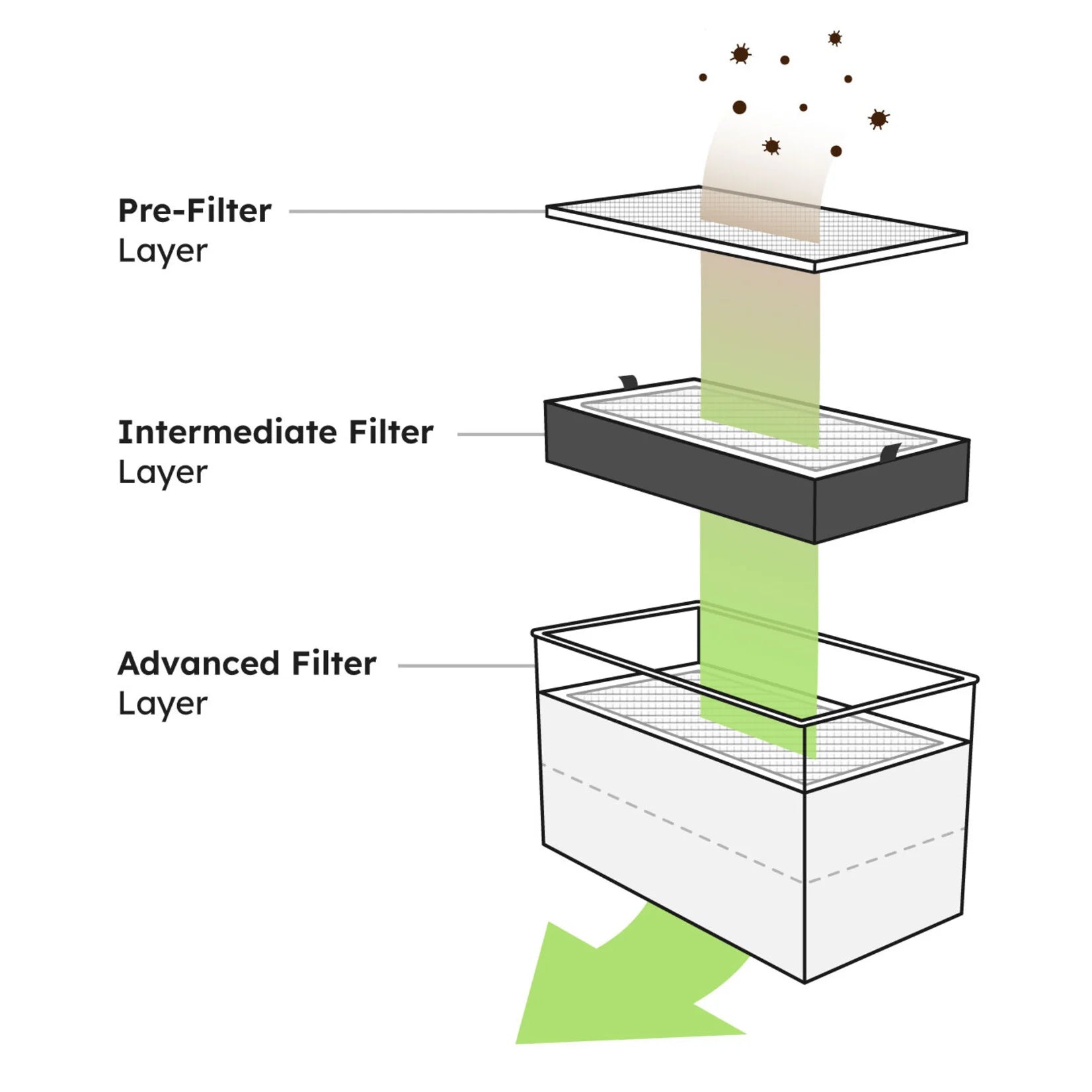

The Beam Air Pro uses three filtration stages. A pre-filter captures larger particles and debris, an H13 HEPA intermediate filter captures finer airborne particles, and an advanced filter combines activated carbon for gas and odour adsorption with U16 ULPA filtration for ultrafine particles. Each filter stage is replaceable.

The Beam Air Pro is designed to capture smoke and airborne particles while reducing many odours and gaseous contaminants through its activated carbon filtration stage. Actual performance depends on the materials being processed, filter condition and operating environment. It does not guarantee complete removal of every gas or hazardous emission.

The Beam Air Pro provides filtered extraction that may be suitable for recirculating air in some applications. However, it should not automatically be considered a replacement for external ventilation. Requirements depend on the materials processed, emissions generated and applicable workplace safety regulations. Additional ventilation or extraction controls may still be necessary.

FLUX provides indicative filter lifespans of approximately 4–13 operating hours for the pre-filter, 32–100 hours for the H13 intermediate filter and 250–800 hours for the advanced filter. Actual lifespan varies significantly with materials, cutting frequency, smoke production and operating conditions. These intervals are estimates rather than guaranteed replacement periods.

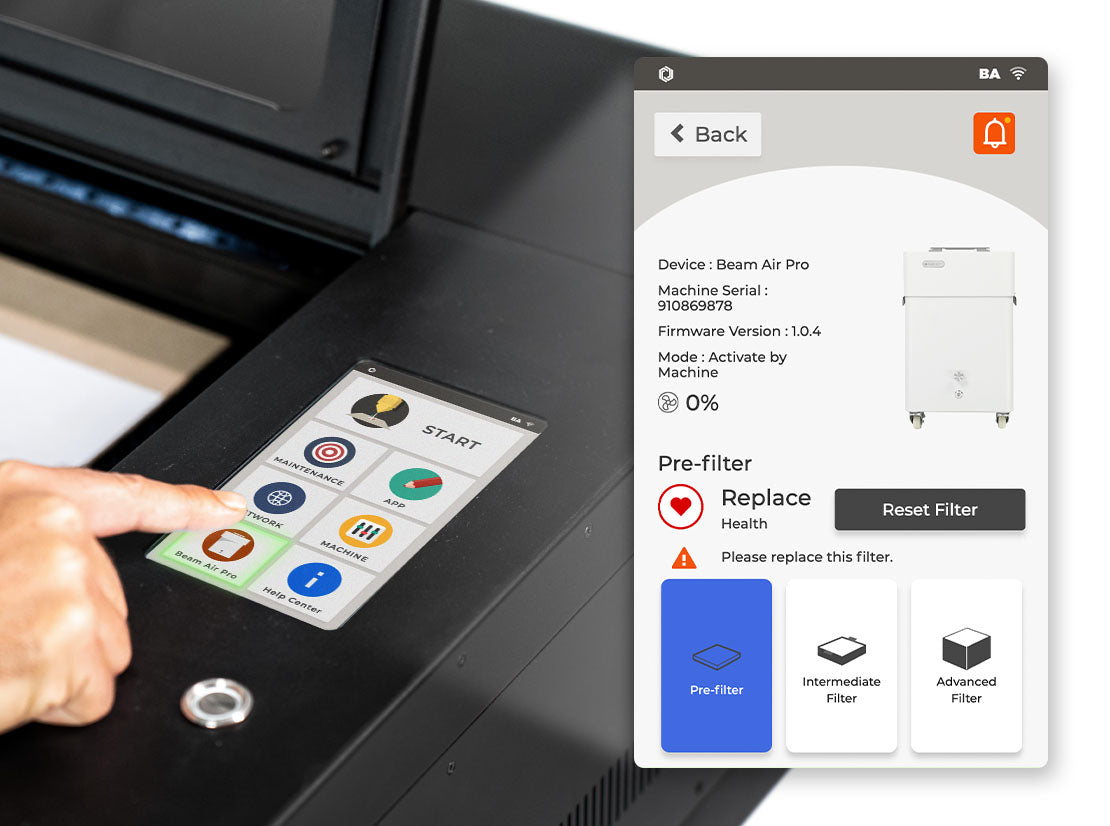

The Beam Air Pro uses filter monitoring and status indicators to help identify when maintenance is required. A yellow indicator can signal filter replacement, and compatible FLUX machines can display filter health information. Reduced extraction performance, particularly when operating at maximum fan speed, can also indicate that one or more filters require replacement.

Yes. The pre-filter, intermediate filter and advanced filter are separate replaceable components. FLUX recommends replacing filters according to their condition and monitoring information. When troubleshooting reduced airflow, the recommended replacement order is pre-filter, intermediate filter and then advanced filter.

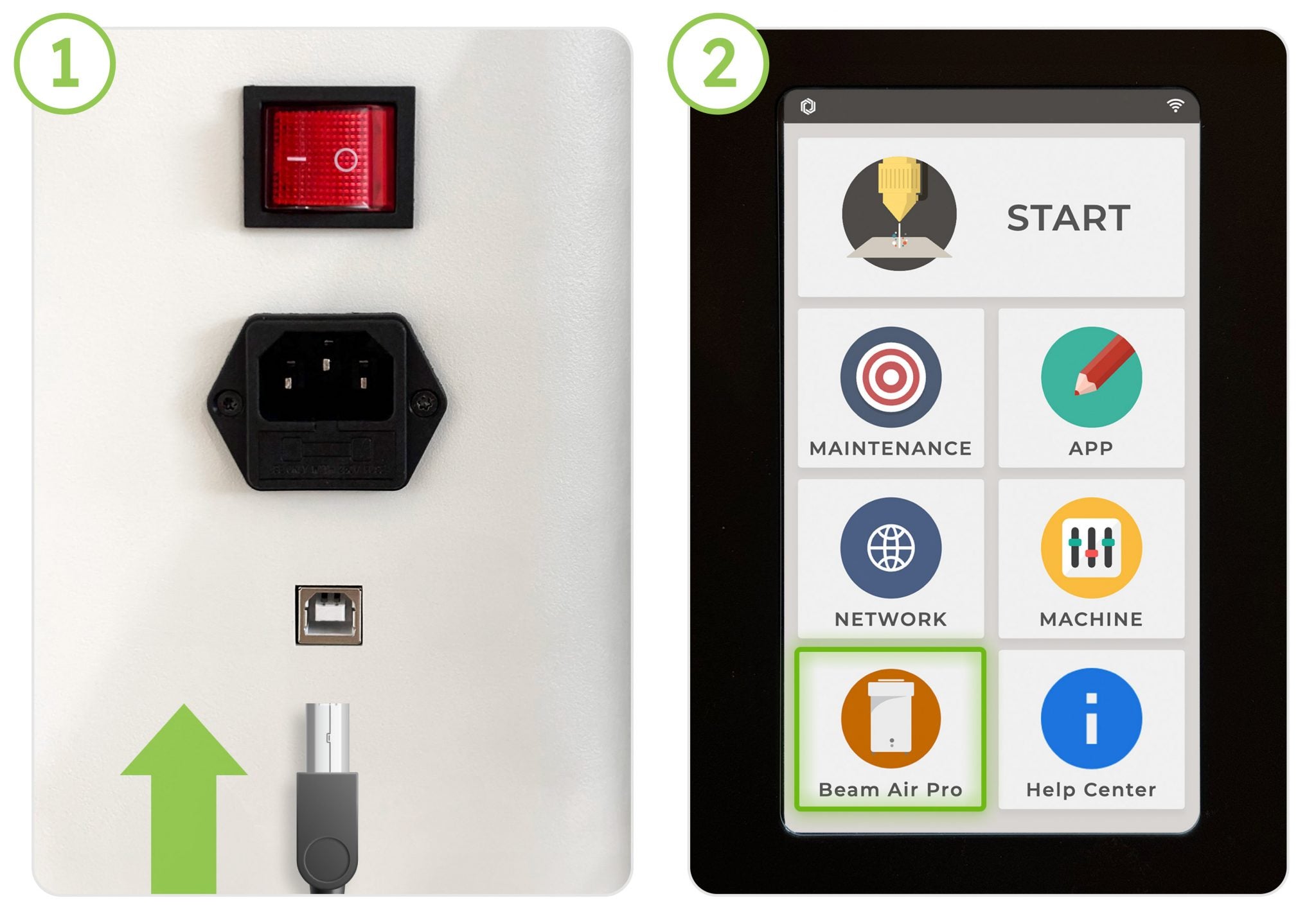

Yes. When connected to a compatible FLUX laser cutter using USB-B, the Beam Air Pro can automatically start extraction when laser processing begins and stop when the job finishes. This reduces the need to operate the filtration unit separately for each job.

Yes. The Beam Air Pro includes manual ventilation adjustment so users can control extraction performance. It also features Active Volume Control, which helps compensate for changes in airflow as filters accumulate particles during operation.

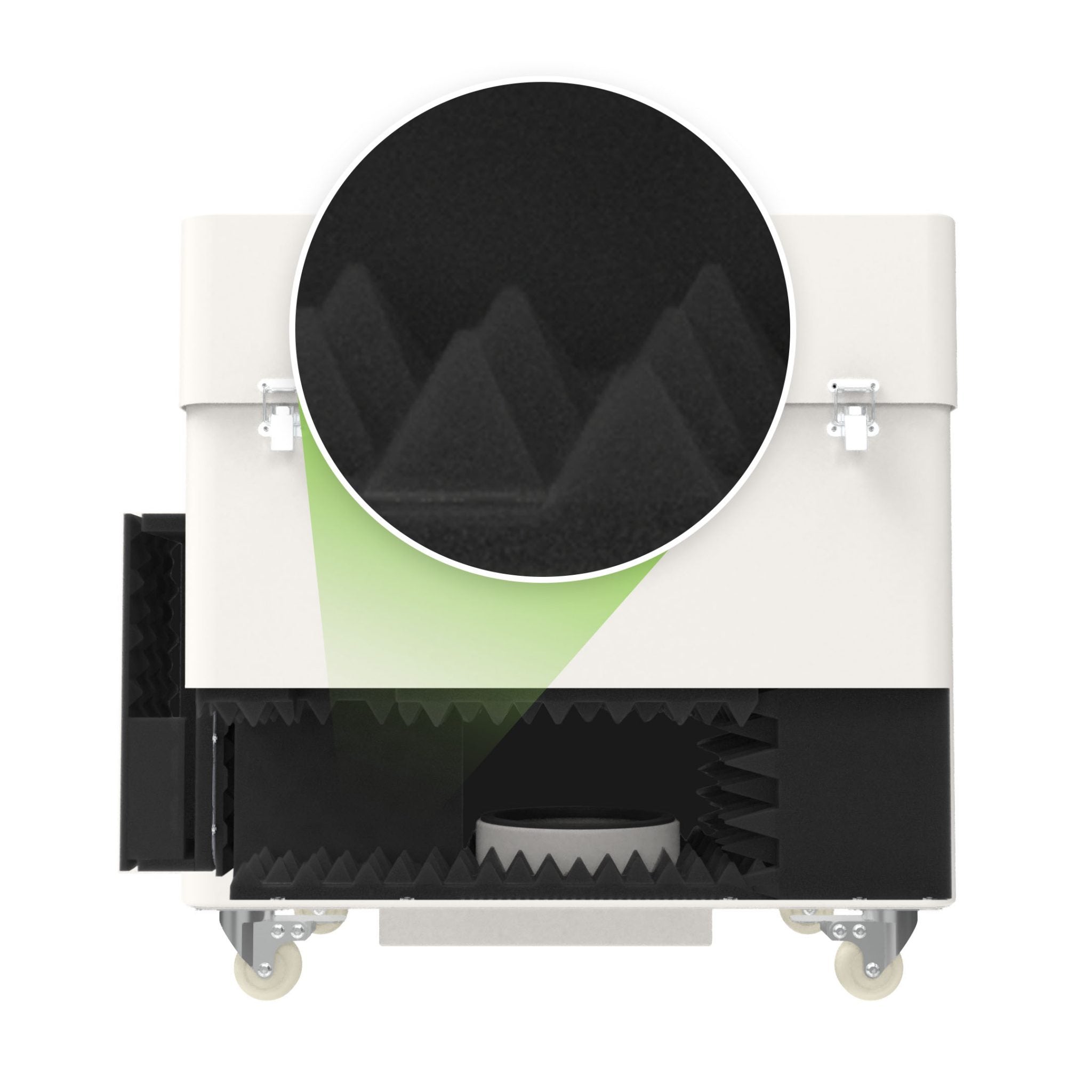

FLUX specifies an acoustic level below 80 dB(A) for the Beam Air Pro. The system includes sound-absorbing materials and noise-reducing enclosure features. Actual operating noise depends on the selected fan speed, installation and surrounding environment.

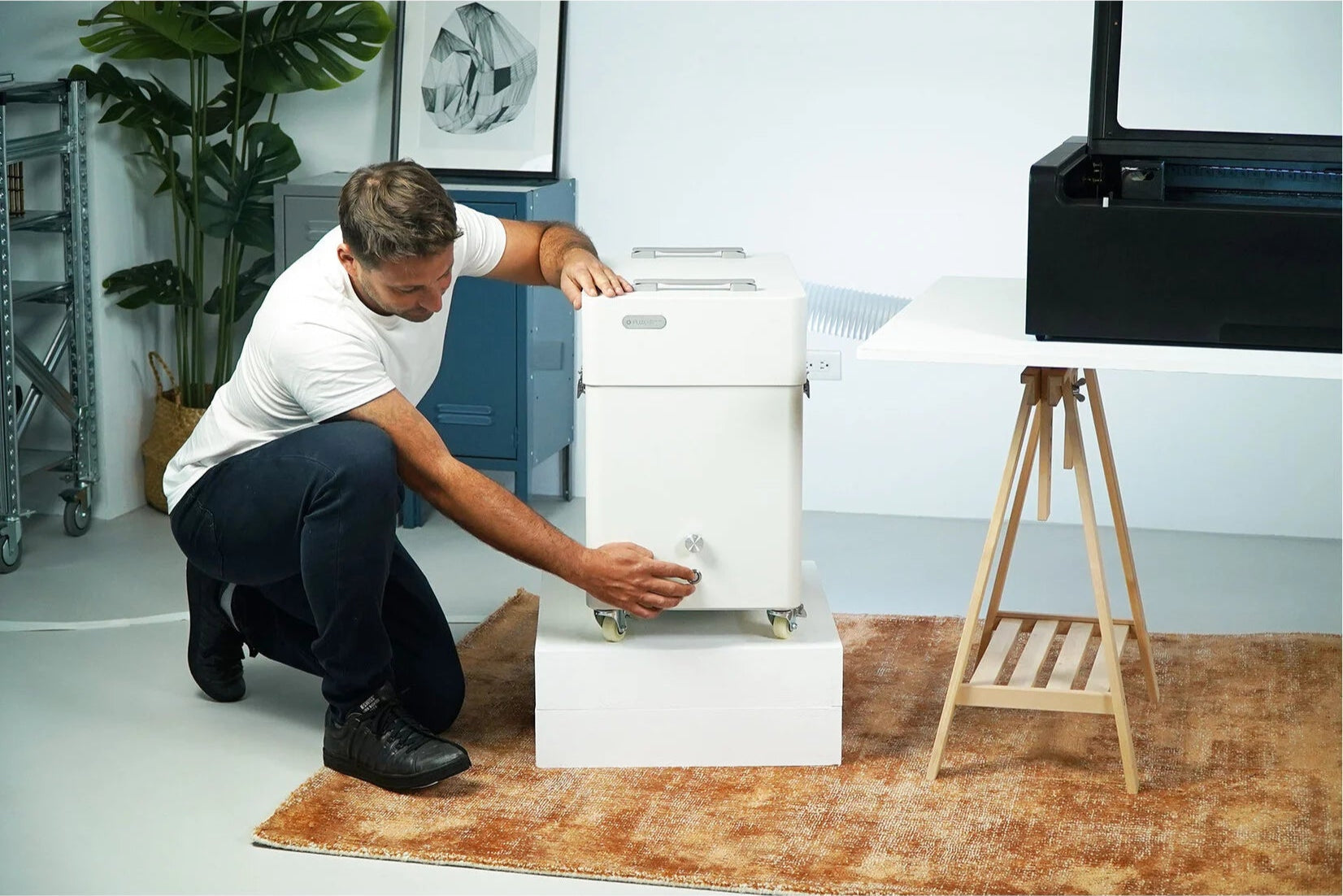

The FLUX Beam Air Pro measures 682 × 384 × 608 mm and weighs approximately 49 kg. Its slim cabinet design and integrated wheels make it easier to position around suitable workspaces.

The Beam Air Pro has a 100 mm diameter air inlet and a 118 mm diameter air outlet. Confirm the extraction hose, connectors and any required adapters are suitable for your laser machine and installation before purchasing.

The Beam Air is a smaller filtration system weighing approximately 17 kg, while the Beam Air Pro weighs approximately 49 kg and is designed for more demanding applications. The Pro adds an advanced three-stage filtration system with H13 HEPA and U16 ULPA filtration, smart filter monitoring, status indicators and Active Volume Control. The best choice depends on the laser machine, materials and workload.

Yes. The Beam Air Pro is designed for laser cutting and engraving environments requiring substantial filtration capacity and airflow management. It can be suitable for workshops, schools, studios and businesses, provided the machine is correctly matched to the laser and materials. Regular filter replacement is particularly important for smoke-heavy applications such as cutting wood and MDF.
